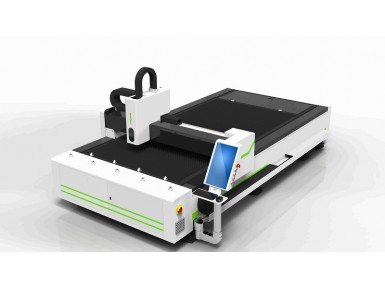

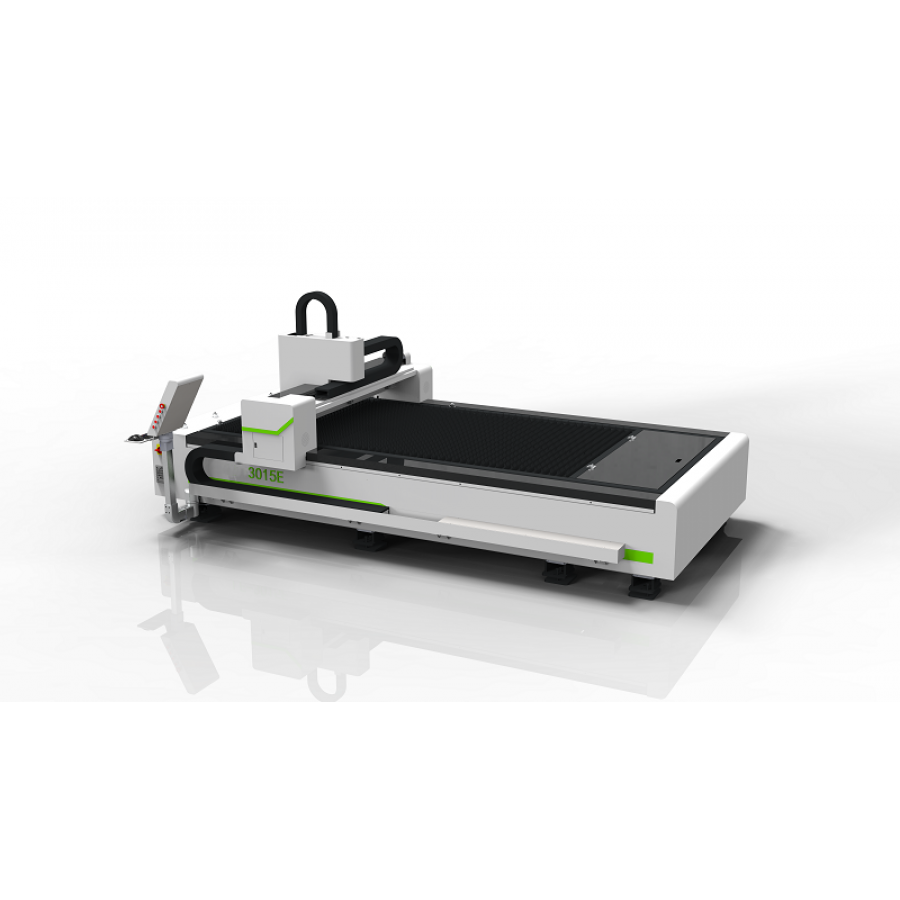

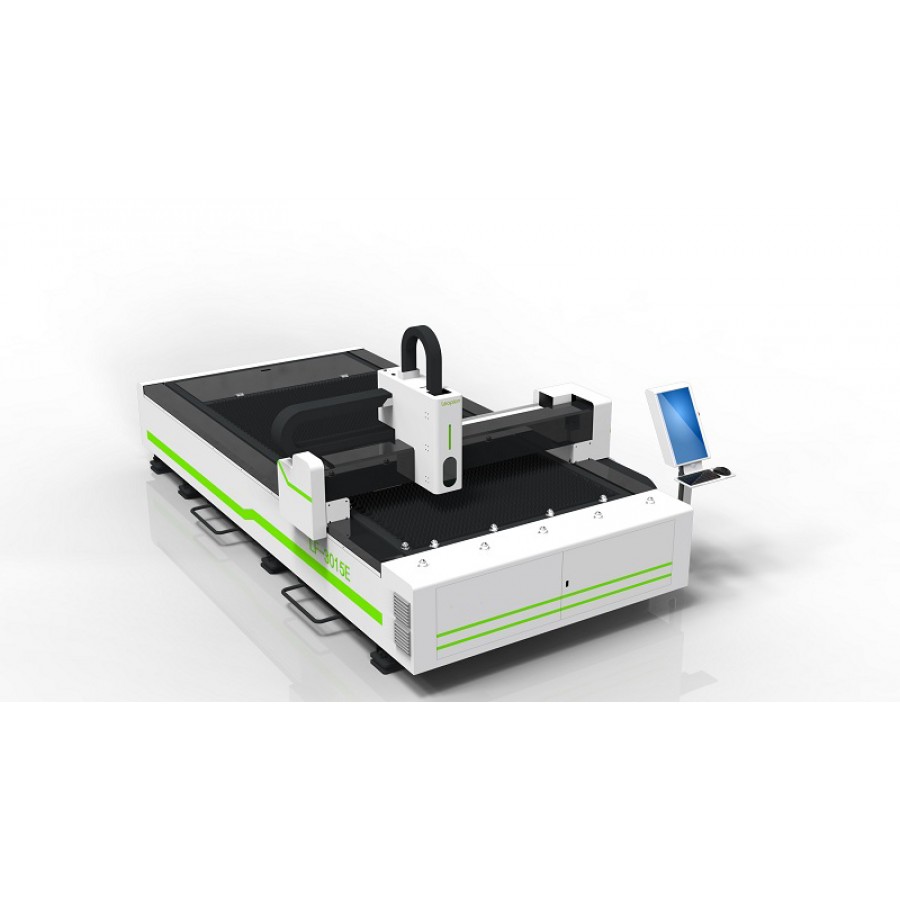

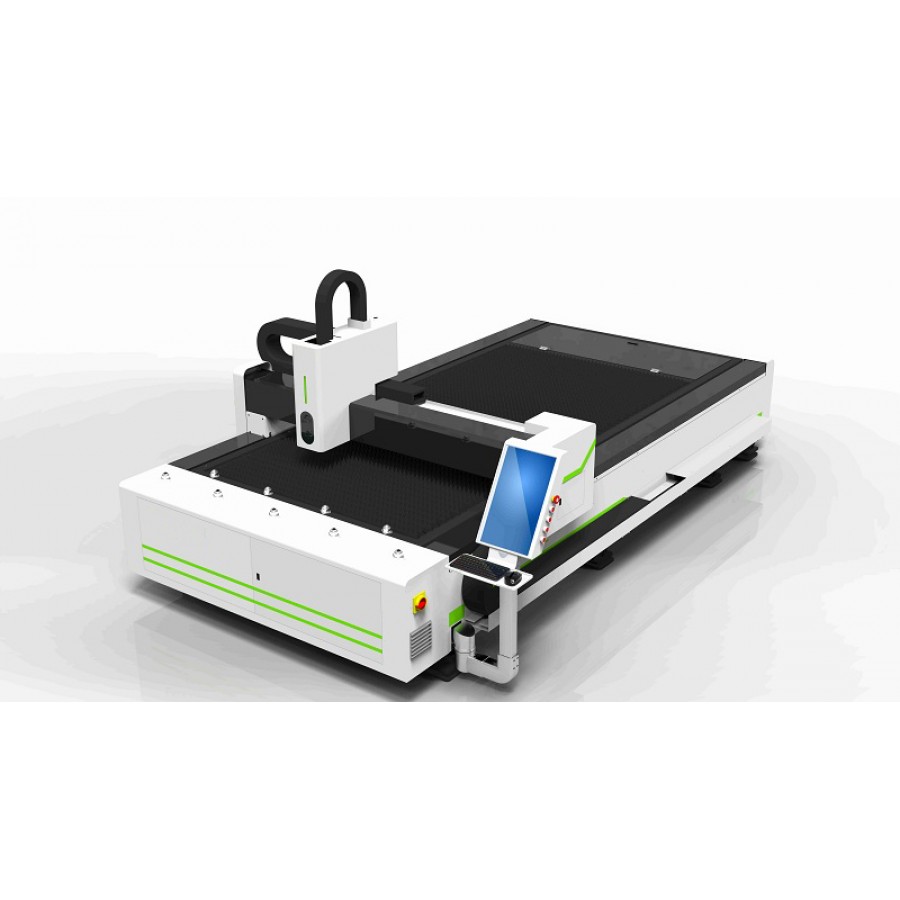

FIBER laser Economy 3015
-
Availability: Pre-Order
More Views
 | Brochure PDF |
 | Working area : |
 | Laser power: 500W / 800W |
 | Working speed: up to 25 m/min |
 | More info |
-
Цена без ДДС: 42,900.00 лв.
The fiber laser cutter is an ideal entry level laser cutter which does not need any high purchase cost or training cost. It can be equipped with a 500W or 800W laser source.The machine is mainly designed for advertisement industry. With the good cutting quality and effective, the fiber laser cutting machine can realize what you want to cut on metal material.
The price is for 500W FIBER. for other powers and configurations please contact
Strong construction and hi-precision mechanicHigh strength, not easily deformatted |  |
 | Raytools laser cutting headOptimized optical configuration and smooth and efficient airflow design; Fully upgraded dust-proof design, double-layer protection, the risk of contamination of the lens is almost zero;Add laser head body anti-collision function;Dial focus adjustment and manual correction, fine and flexible adjustment, adjustable range 20mm, precision 0.05mm;The collimating mirror, focusing mirror and nozzle have a cooling structure. |
Professional software solutionSoftware that is thought of everything. It has a very rich functionality tailored to the specifics of cutting metal. NESTING, leaving "bridges", "cooling" points, multi-step initial drilling, special cut-off only for the protective foil and much more. useful functions. Supports most commonly used file formats - PLT, DXF, NC-code, AI, GBX, LXD |  |
 | Hi quality motors and partsThe FIBER laser is fully powered by FUJI precision power-assisted FUJI servomotors with feedback. This provides accurate and secure work. Cables, switches, switches, relays and fuses are of established manufacturers - General Electric and Schneider |
Independent from the environmentA powerful industrial refrigerant cooler guarantees a constant temperature of the source source and the cutting head. This makes the machine independent of the outside temperature ensuring long-lasting trouble-free operation |  |
| Configuration | FIBER | ||
| Working area | 3000 х 15000 mm | ||
| Z move | 70 mm | ||
| Cutting speed | up to 25 m/min | ||
| Laser power | 500W / 800W | ||
| Max. cutting thickness | 6mm carbon steel, 3mm stainless still | ||
| Working voltage | 380V ±10% 50Hz | ||
| Accuracy | 0.01mm | ||
| Software | CypCut | ||
| Supported file formats | PLT, DXF, AI, LXD, GBX | ||
| Equipment | RedDot dot pointer, chiler, suction fans | ||
| FIBER source life time | 100 000 working hours | ||
| Тегло | 2700 kg | ||
| Размери | 4660mm*2370mm*1960mm | ||
 | |||
Tags: FIBER laser Economy 3015
