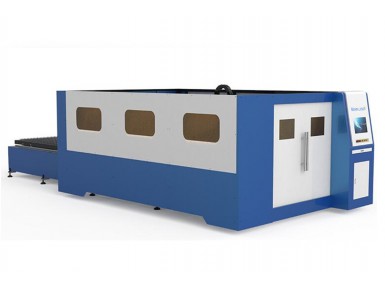

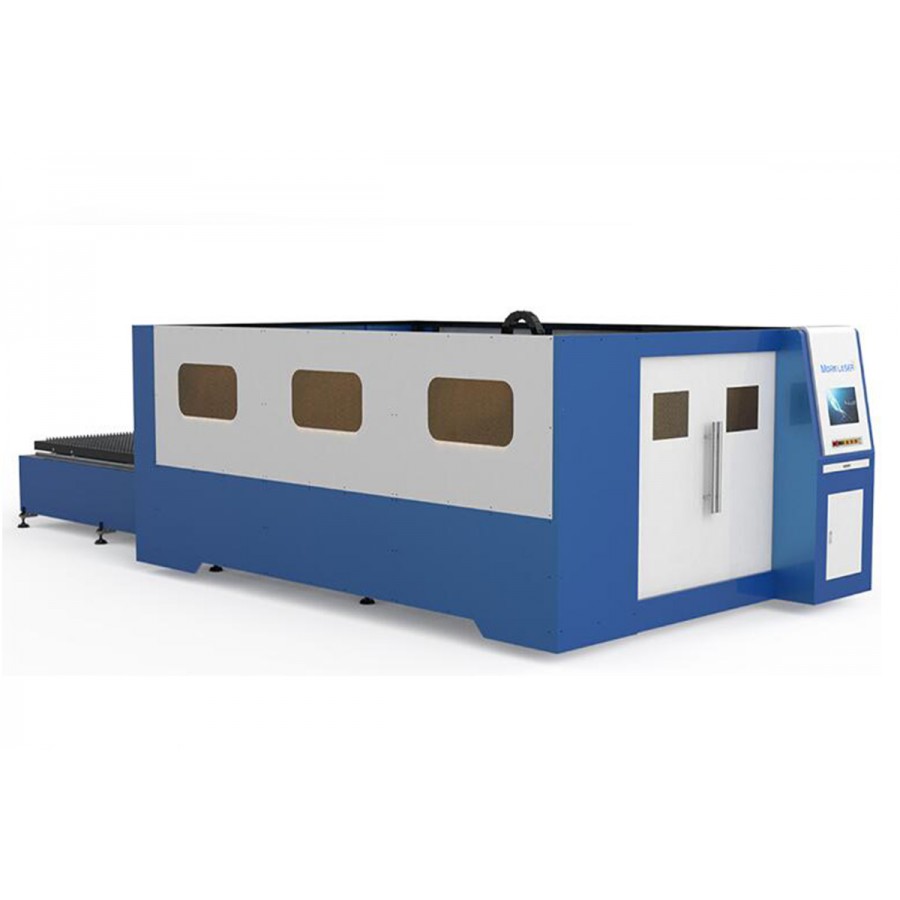

FIBER laser Standard 3015 Closed

Product Code: FIBER лазер Standard 3015
Availability: Pre-Order

More Views

Цена без ДДС: 72,600.00 лв.

Qty

Description

High speed fiber laser cutting machine equipped with high quality parts. That all high version and bigger power than standard machines. Such as the power of servo drivers and motors, reducer version, software version, gear and rack, machine frame, etc. The size can be customized to be able to meet your needs. Suitable for laser power up to 3kW.

This machine maximum speed could up to 120m/min. And this machine working accuracy is up to 0.02mm. It is popular with his perfect cutting edge and nice performance.

Fiber laser cutting machine is professional used in rapid cutting on metal plates. Such as stainless steel, mild steel, carbon steel, galvanized plate, many kinds of alloy, etc.

Meantime, if you want to cut high reflection metal materials. Such as brass, copper, aluminum, silver, gold, etc. Our metal cutting machine could also meet your demand. with American nLIGHT or LPG laser source.

High speed fiber laser cutter is widely used in the industries and daily life. Such as the advertisement industry, decoration industry, kitchen and kitchen ware, engineering machinery, steel and iron, automobile, metal plate chassis, air-conditioner manufacturing, metal plate cutting, etc.

The price is for 500W FIBER. for other powers and configurations please contact

Strong construction and hi-precision mechanic Many cutting problems arise from vibrations and uneven motion. This reduces cutting quality, increases marriage, and costs the product. The FIBER laser is constructed with stable 30mm Taiwanese rails PMI and YYC rack. Non-linearity of the rails is less than 0.02mm. The machine body high temperature annealing to remove stress and precise CNC calibration to ensure no deformation after many years of use. The weight of the body is 2.5 tons.
	Raytools laser cutting head Optimized optical configuration and smooth and efficient airflow design; Fully upgraded dust-proof design, double-layer protection, the risk of contamination of the lens is almost zero;Add laser head body anti-collision function;Dial focus adjustment and manual correction, fine and flexible adjustment, adjustable range 20mm, precision 0.05mm; The collimating lens, focusing lens and nozzle have a cooling structure. For quality cut, it is extremely important that the laser is always in focus. The intelligent system does this with an accuracy of 0.05 mm, scanning and correcting the height 1000 times per second. The servo engine reacts with an acceleration of 2G and a response time of less than 1ms.
Professional software solution Software that is thought of everything. It has a very rich functionality tailored to the specifics of cutting metal. NESTING, leaving "bridges", "cooling" points, multi-step initial drilling, special cut-off only for the protective foil and much more. useful functions. Supports most commonly used file formats - PLT, DXF, NC-code, AI, GBX, LXD
	Hi quality motors and electrical parts The FIBER laser is fully powered by Yaskawa - it is a professional manufacturer in the field of motion control. It is the first one to be a servo motor in Japan. Its products are known for their stability and speed, and cost-effective. Accuracy: realizes closed-loop control of position, speed and torque; Overcomes the problem of stepping motor out of step; Rotating speed: high speed performance,general rated speed can reach 2000-3000 rpm. Stability: Built-in auto-calibration system for maximum smooth and fast and precise positioning US electrical parts Honeywell or Schneider-France have been used due to their robust operation, low defects to ensure long-term use and safe operation
Cast aluminum gentry Mold as one complete detail reduces the probability of cross-beam failure and maximum guarantee for normal operation under all parameters. Aluminum beam (regardless of laser power) gives better stability, higher cutting speed and acceleration than traditional iron beams. The advantage is particularly felt in the processing of small details, greatly improving the efficiency of the work.

Configuration	FIBER
Working area	3000 х 15000 mm
Z move	70 mm
Cutting speed	up to 120 m/min
Laser power	500W, 800W, 1kW, 1.5kW, 2kW, 3kW
Max. cutting thickness	6mm carbon steel, 3mm stainless still
Working voltage	380V ±10% 50Hz
Accuracy	0.02mm
Software	CypCut
Supported file formats	PLT, DXF, AI, LXD, GBX
Equipment	RedDot dot pointer, chiler, suction fans
FIBER source life time	100 000 working hours
Тегло	3700 kg
Размери	4660mm2370mm1960mm
