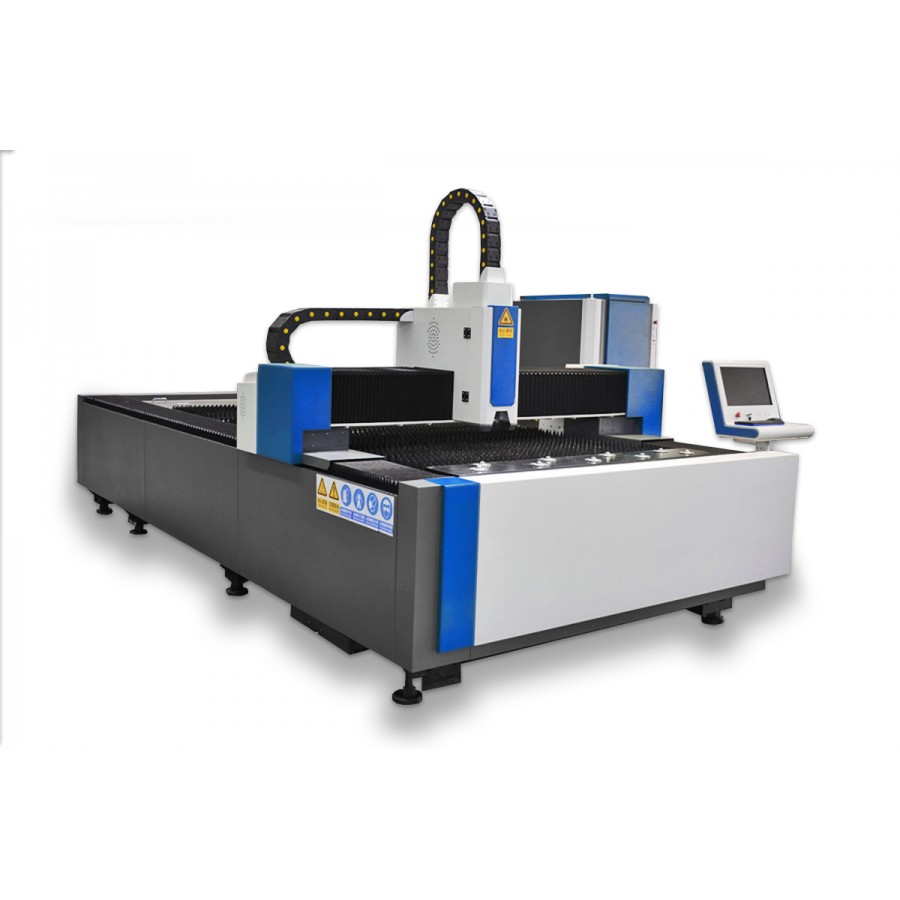

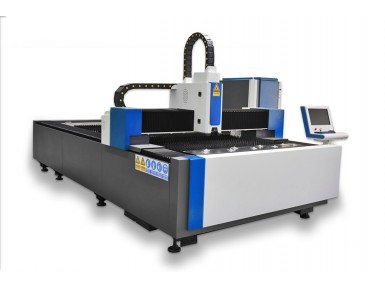

FIBER laser Pro 3015

Product Code: FIBER лазер Pro 3015
Availability: Pre-Order

More Views

Цена без ДДС: 117,600.00 лв.

Qty

Description

Top-of-the-line high-speed cutting machine for metal sheets equipped with a fiber laser that can cut black and non-ferrous metals. The Fiber Laser is compact, distinguished by its exceptional energy efficiency and productive performance.

Cast iron graphite steel body with a weight of 5700 kg, beam of cast aluminum and aluminum.
Powerful servomotor Yaskawa, 2,9kW. Works at an acceleration of 1.5 G and a speed of 170 m/min.
The laser head has an auto-compensated focus compensation controlled by the software. Double safety system and active lens cooling.
Automatic central lubrication system
WiFi Controller Controller

Available in some sizes: 150x300cm, 200x400cm, 200x600cm
Suitable for laser power up to 12kW

The application of FIBER laser is fast and quality cutting not metals - stainless steel, soft steel, carbon steel, galvanized metal sheets, many kinds of alloy, etc.
The Fiber laser has a shorter wavelength and is absorbed 3 to 4 times easier than the traditional CO2 laser. This allows high-quality machining of difficult to process metals and alloys and high-reflective alloys like aluminum, brass, copper and titanium. We recommend using US laser resonators nLIGHT or IPG.

The price is for 1500W FIBER. for other powers and configurations please contact us

Optionally can order a changing table, a safety full cover and a rotating pipe cutting unit

Strong construction and hi-precision mechanic Many cutting problems arise from vibrations and uneven motion. This reduces cutting quality, increases marriage, and costs the product. The FIBER laser is constructed with stable 30mm Taiwanese rails PMI and YYC rack. Non-linearity of the rails is less than 0.02mm. The machine body high temperature annealing to remove stress and precise CNC calibration to ensure no deformation after many years of use. The weight of the body is 2.5 tons.
	Raytools laser cutting head Optimized optical configuration and smooth and efficient airflow design; Fully upgraded dust-proof design, double-layer protection, the risk of contamination of the lens is almost zero;Add laser head body anti-collision function;Dial focus adjustment and manual correction, fine and flexible adjustment, adjustable range 20mm, precision 0.05mm; The collimating lens, focusing lens and nozzle have a cooling structure. For quality cut, it is extremely important that the laser is always in focus. The intelligent system does this with an accuracy of 0.05 mm, scanning and correcting the height 1000 times per second. The servo engine reacts with an acceleration of 2G and a response time of less than 1ms.
Professional software solution Software that is thought of everything. It has a very rich functionality tailored to the specifics of cutting metal. NESTING, leaving "bridges", "cooling" points, multi-step initial drilling, special cut-off only for the protective foil and much more. useful functions. Supports most commonly used file formats - PLT, DXF, NC-code, AI, GBX, LXD
	Hi quality motors and electrical parts The FIBER laser is fully powered by Yaskawa - it is a professional manufacturer in the field of motion control. It is the first one to be a servo motor in Japan. Its products are known for their stability and speed, and cost-effective. Accuracy: realizes closed-loop control of position, speed and torque; Overcomes the problem of stepping motor out of step; Rotating speed: high speed performance,general rated speed can reach 2000-3000 rpm. Stability: Built-in auto-calibration system for maximum smooth and fast and precise positioning US electrical parts Honeywell or Schneider-France have been used due to their robust operation, low defects to ensure long-term use and safe operation
Cast aluminum gentry One installation to reduce the emergence of the crossbar malfunction probability of maximum guarantee the normal operation of the machine tool, faster acceleration parameteres, such as improving can reduce the invalid operation time of machine tool at low speed, improve processing efficiency.

Configuration	FIBER
Working area	3000 х 15000 mm
Body	cast iron
Cutting speed	up to 170 m/min
Laser power	500W, 800W, 1kW, 1.5kW, 2kW, 3kW
Max. cutting thickness	6mm carbon steel, 3mm stainless still
Working voltage	380V ±10% 50Hz
Accuracy	0.02mm
Software	CypCut
Supported file formats	PLT, DXF, AI, LXD, GBX
Equipment	RedDot dot pointer, chiler, suction fans
FIBER source life time	100 000 working hours
Тегло	3700 kg
Размери	48650mm2370mm1960mm
