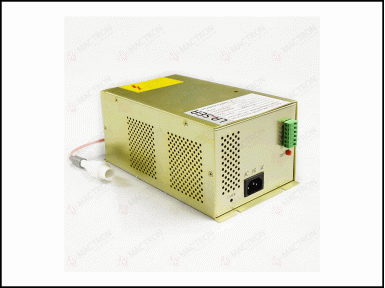

Laser power supply 100W

Product Code: 100W захранващ блок
Availability: In Stock

Цена без ДДС: 515.00 лв.

Qty

Description

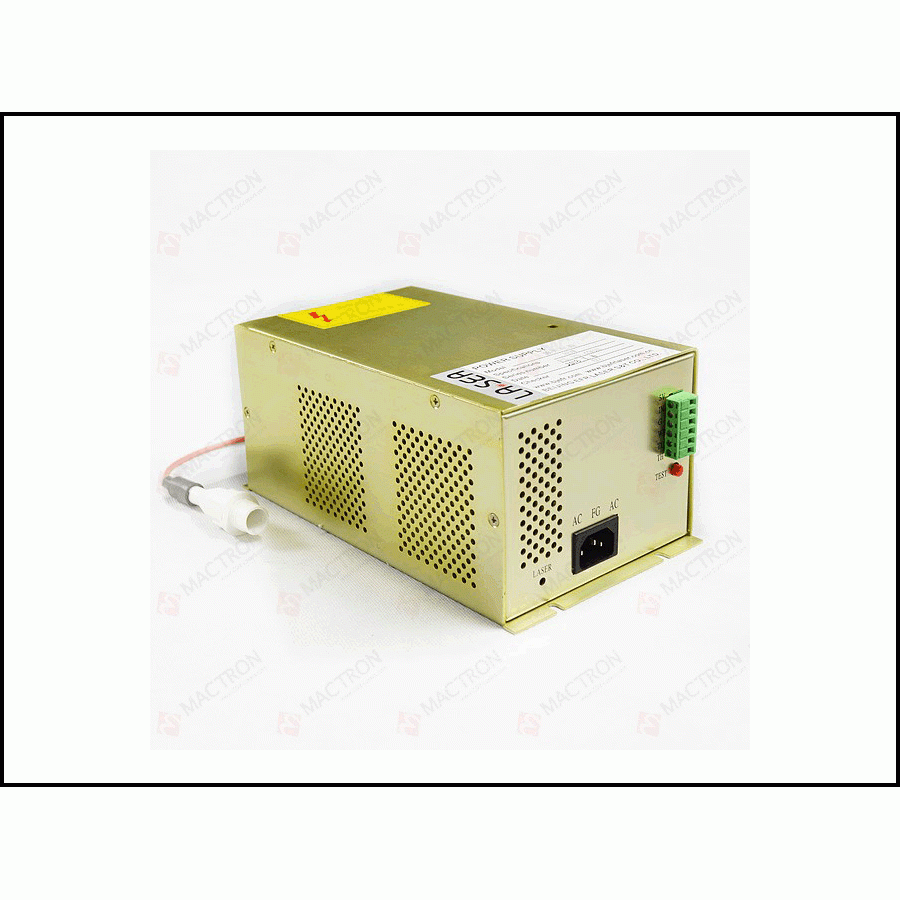

100W Co2 Laser Power Supply

Mode		100W
Input voltage		220/110V
Response speed		≤1mS
Max output current		35mA
Starter voltage		40KV
Nominal power		600W
Output voltage		50KV
Working voltage		28KV
Output current		9-35mA
Using condition	Temperature	-10~40℃
	Humidity	≤85%

Power supply aging test: each laser power supply will be tested by full load condition under high temperature 60 degrees for 12 hours for aging test. Every 7 seconds to open, stop the power test for 500 times.

100W

* Adoption of zero-current soft-switching half-bridge circuit makes power supply have high working efficiency, fast response features, and is easy to work with laser tube

* Port controls simple, adapt to the high and low level two signals, using TTL can control the laser and, at the same time, stop with abnormal protection switch, testing outside water supply, ventilation, etc.

* Laser power regulation can input 0 to 5v analog signals, also can input PWM signal to control the output of the laser power.

* Power supply with open circuit protection function: in the case of good grounding protection, power supply can work for short time in open state, so that we can avoid the laser supply damage caused by laser tube burst.
